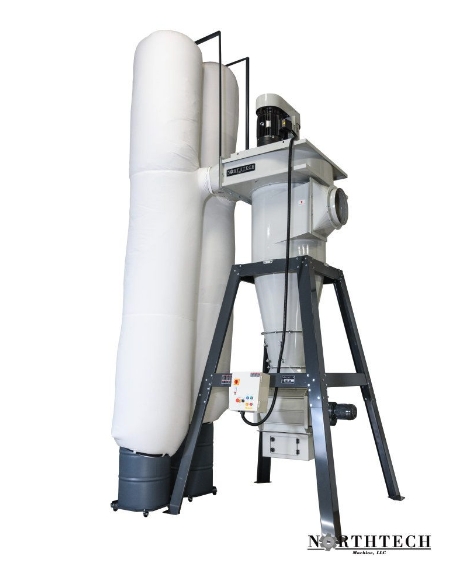

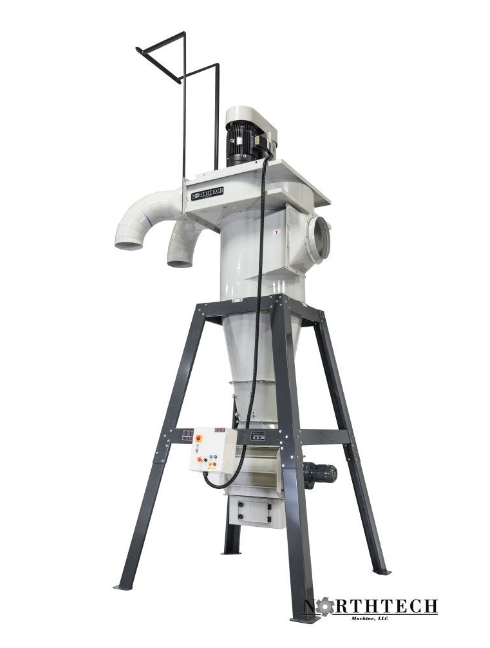

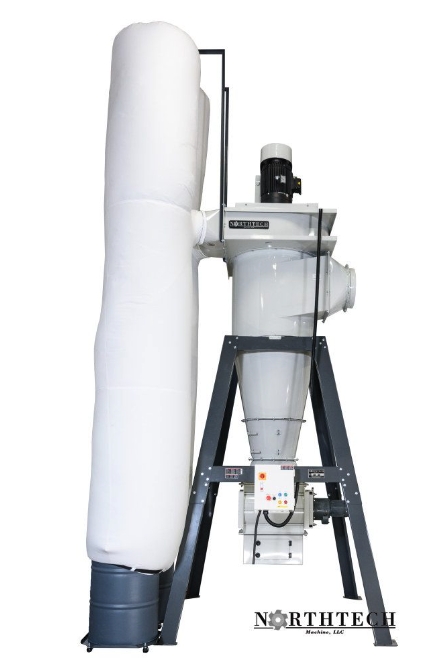

Northtech Model NT-2ST20XL-RAL Dust Collector
Machine Available
Stock #571305N
New- This is a 20HP fan with a primary cyclone filter with a rotary are lock
- The natural cyclonic air flows allows clean air to pass through the center of the cyclone into the blower and through the secondary filter bags
- A clean air mounted blower and steel cyclone design provides decades of dust separation without primary filter bags
- This cyclone and filter bad are supported by a steel frame structure that allows for the ise of standard barrels and secondary waste system as an auger or transfer blower
- Main Motor: 20 HP
- Voltage, Frequency: 230/460 Volt 60 Hz
- Phase: 3 Phase
- AMP Requirement: 27 / 54 Amps
- Total Machine HP: 21 HP
- Approved Electrical Parts: CE Approved Components
- Dual Voltage Motors: 230/460 Volt
- Control Voltage: 220 Voltage
- Assisted Star: Wye Delta
- Dust Port Size Inlet: 16" Round Inlet
- Free Air CFM: 8200 CFM

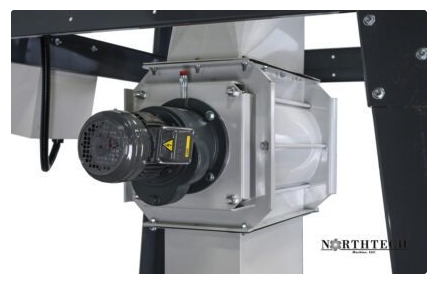

- R.A.L Size: 10" x 24"
- R.A.L HP: 1 HP
- Impeller: 26"
- Frame Construction: Steel
- Cyclone Diameter: 35"
- Weight: 2180 lbs
- Machine Dimensions: 102" x 82" x 222"
