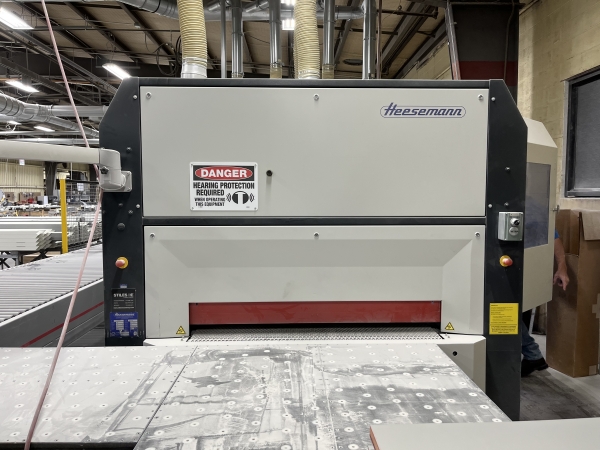

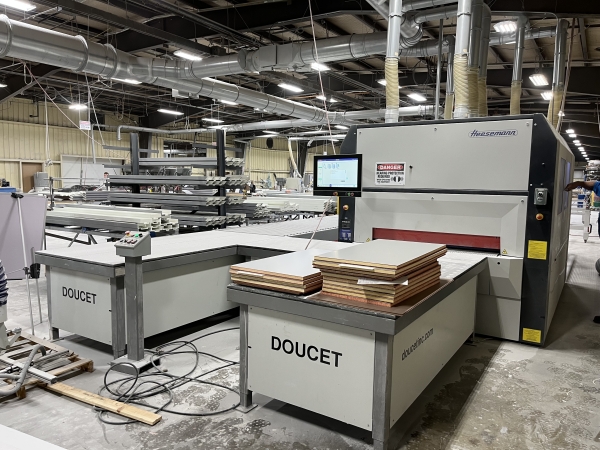

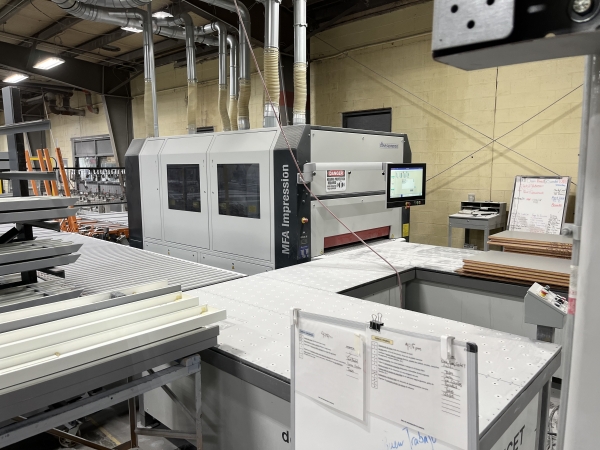

Heesemann Model MFA Impression 4-Head Wide Belt Sander
Machine Available
Stock #7232
Used- Heesemann Model MFA Impression 4-Head Wide Belt Sander
- Working Width: 53" (1350mm)
- Workpiece Thickness: 0.118" to 6" (3mm to 160mm)
- Working Height: 36.2" (880 mm)
- Wide Belt Size: 103" x 55" (2620mm x 1400mm)
- Cross Belt Size: 189"x6" (4800 x 150mm)
- Variable Feed Speed: 10-50 FPM (3-15 mpm)
- Vacuum Bed for Safe Movement os Workpieces Shorter than 19.7" (500mm)

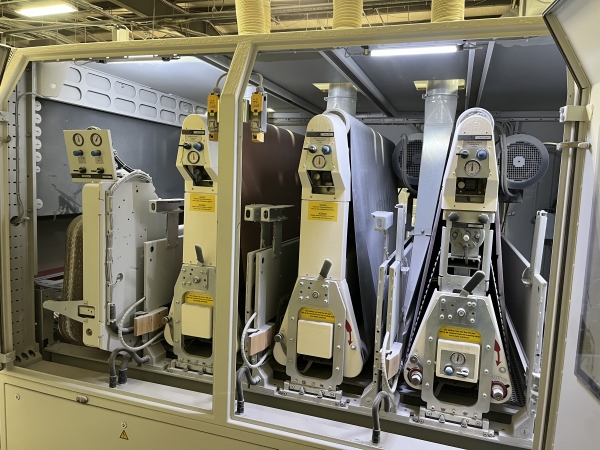

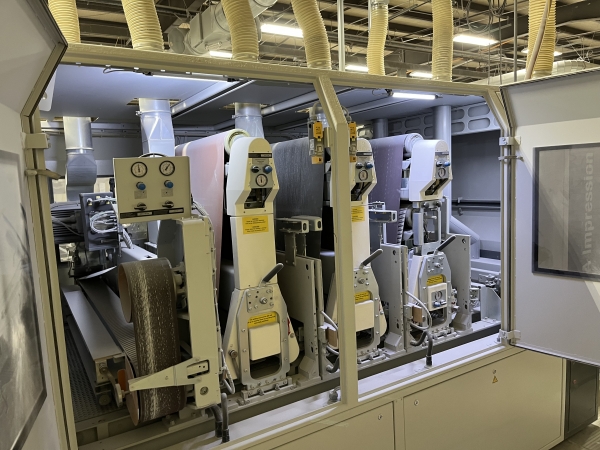

- All Heads Equipped With:
- Variable Speed Belt equipped with Inverter Motor
- CSD® segmented pad system on all Heads
- A pinch roll system, rubber covered and adjustable
- An automatic infra-red belt control
- Servo cross belt tracking adjustments, for quick and easy belt centering when loading
- Head #1: Cross Sanding Unit
- Heesemann's Cross Sanding Head Unit Removes Fiber from Solid Wood or can be used to Remove Tape from Veneer
- Sanding Belt Speed:6.5 - 65 FPS (2-20 m/s)
- Drive Motor: 23HP (17kW)
- Head #2: Longitudinal Sanding Unit
- Sanding Belt Speed: 6-60 FPS (1.8-18 m/s)
- Drive Motor: 23HP (17kW)
- Head #3: Longitudinal Sanding Unit
- Sanding Belt Speed: 6-60 FPS (1.8-18 m/s)
- Drive Motor: 23HP (17kW)
- Head #4: Lef Head w/ Internal Pressure Belt
- Enhanced Finish Let Head Features an Inner Chevron Belt to Allow for Fine Sanding of Workpiece
- Sanding Belt Speed w/o Pressure Belt: 6-60 FPS (1.8-18 m/s)
- Sanding Belt Speed w/ Pressure Belt: 6-30 FPS (1.8-9 m/s)
- Drive Motor: 23HP (17kW)
- Additional Options Included
- Workpiece Blasting Device - Rotating Compressed Air Nozzles for Blasting Workpiece Surface
- LED Lights on Belt Change Side
- Ionization Bar from Above that Helps Reduce Static Charge
- Pneumatic Conveyor Belt Cleaning
- Dust Extraction: Approx 6000 CFM
- Compressed Air: 100 cfm @ 100 psi
- Power: 480 Volt, 3 Phase, 60HZ
