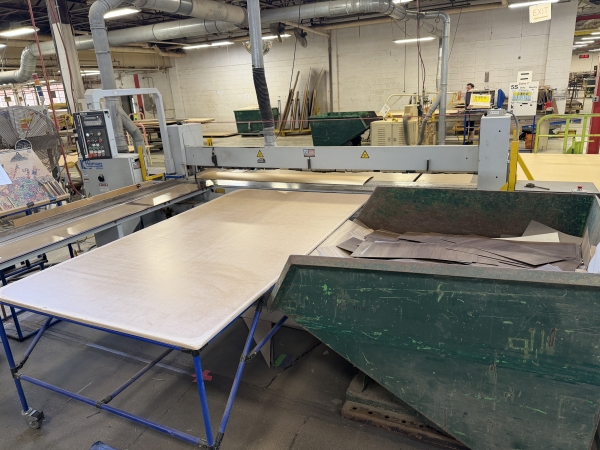

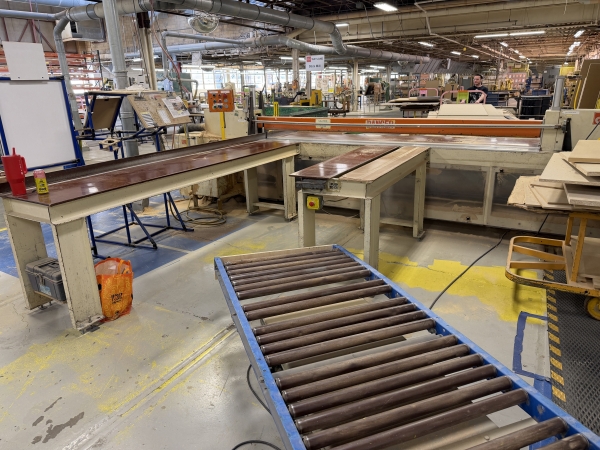

Hendrick Model HM3 Horizontal Beam Saw

• The HM3 Horizontal Panel Saw is a powerful machine ideal for businesses looking for an alternative to expensive sliding table saws. Experience the difference of an automatic, safer, and more powerful machine. Making cuts and adjusting cutting speeds is effortlessly done with the push of a button. Efficiently load and unload materials with the air floatation on the machine’s material support tables. The pneumatic pressure bar secures stacked panels across the entire cutting length for a clean, precise cut. If you’re looking to increase speed and efficiency within your production line, the HM3 Horizontal Panel Saw is the machine your business needs.
  The HM3 Cuts Into:
• Corrugated Card
• Plastic
• Wood
  Standard Specs:
• Standard Lengths of Cut: 8′ & 10′
• 15 HP Main Blade Motor
• Independent 2 HP Scoring System
• Rack & Pinion Saw Carriage Travel by AC Servo
• Variable Saw Carriage Speed
• Fully Automatic Cutting with Easy-To-Use HMI Touchscreen Control Panel
• Solid Table Surface Allows for Cutting of Small Parts
• Air Flotation Tables
  Optional Equipment:
• Spray Mist Blade Coolant
• 18 HP Main Blade Motor
• Adjustable Pneumatic Pop Up Material Indexing Stops
• Custom In-Feed / Out-Feed Table Sizes
• Air Floatation In-Feed / Out-Feed Tables
• Third Party Programmable Automated Material Indexing Stop Systems
