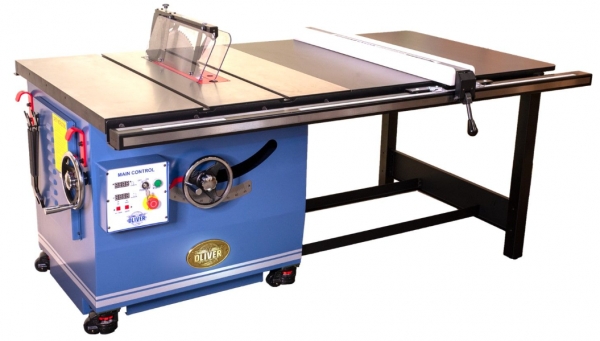

Oliver Model 4065.002 14" Table Saw 52" Rail

• Rail Length w/Side Table w/52" Rail
• Blade Diameter 14"
• Arbor Diameter 1”
• Blade Tilt Left
• Arbor Speed 3,800 RPM
• Maximum Depth of Cut at 90° 5-1/8"
• Maximum Depth of Cut at 45° 3-5/8"
• Maximum Width of Dado 11/16”
• Dado Diameter (Optional) 12”
• Max Dado Size: 12”
• Maximum Cut to Right of Blade 52” Rail
• Maximum Cut to Left of Blade 10”
• Maximum Rip to Right of Blade: 52”
• Dust Port Diameter 4"
• Table Dimensions w/o Extensions 35-13/16“(L) x 39”(D)
• Wing Size 42-1/2”(L) x 39”(D)
• Table Dimensions 78-5/16” (L) x 39”(D)
• Table Height 44"
• Motor 3PH, 220V (19.5A) Prewired. Optional 440V (9.5A) Available.
• Motor 3Ph 7.5HP
• Footprint 74” (L) x 39”(D)
• Overall Dimensions 82“(L) x 48”(D) x 44”(H)
