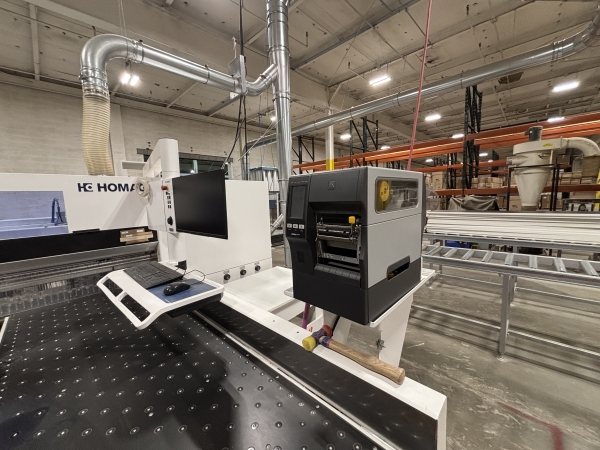

Homag SawTeq B-400 Rear-Load Panel Saw - 2022 Machine!
Machine Available
Stock #82156

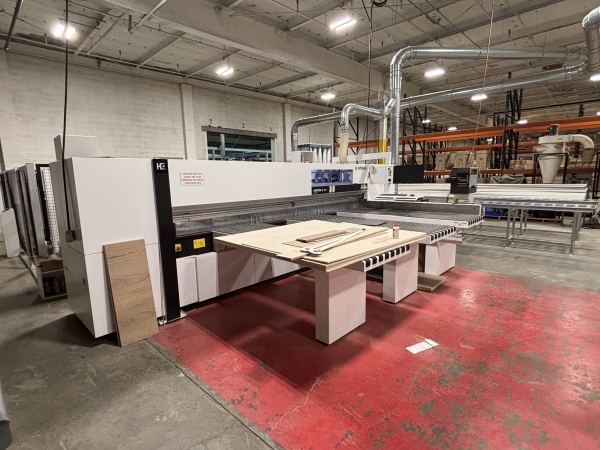

Used- Check out this extremely late model saw, with only a couple weeks worth of hours on the meter! 2022 Homag SawTeq B-400, available immediately!

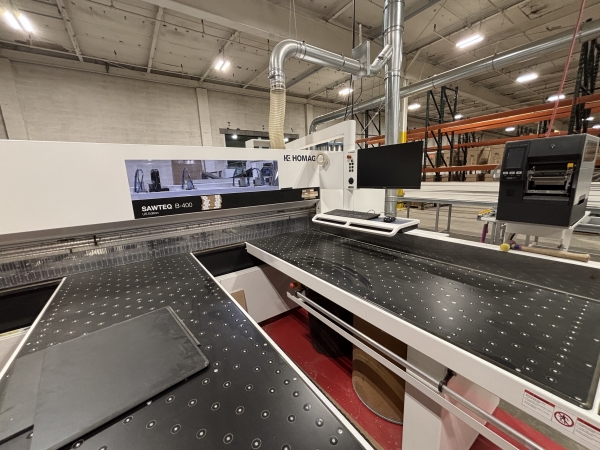

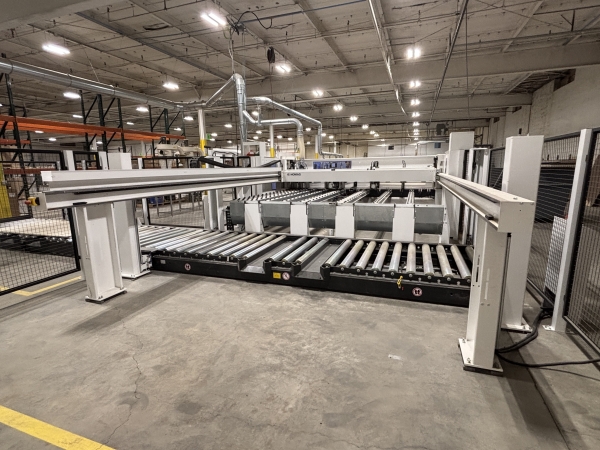

- HOMAG’s SAWTEQ B-400 (HPL 400) US Edition is a flexible saw center. This CNC controlled machine features fast, simple programming coupled with high operating speeds to meet today’s varied production requirements. Designed for clean and accurate cutting of a wide range of sheet goods. Equipped with rear lift table, feed system, with main saw and scoring saw. Run by a single operator, the saw is capable of executing a wide range of cutting pattern types.
- Maximum Panel Size: 62.99” x 145.67” (1,600mm x 3,700mm)
- Cutting Length: 149.6” (3,800mm)
- Three Air Tables
- Main Saw Blade Diameter: 450mm
- Scoring Saw Blade Diameter: 180mm
- Main Saw Motor: 37.8 HP
- Blade Projection: 4.9” (125mm)
- Saw Carriage Speed Forward: 0 – 492 FPM
- Saw Carriage Speed Reverse: 492 FPM
- Program Fence Speed Forward/Reverse: 82/295 FPM
- Automatic Side Pressure Device

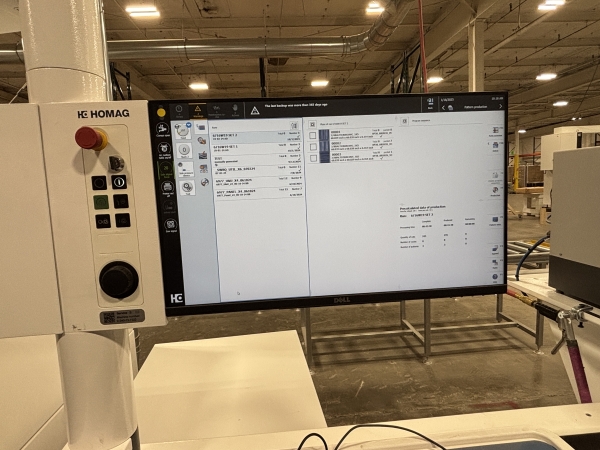

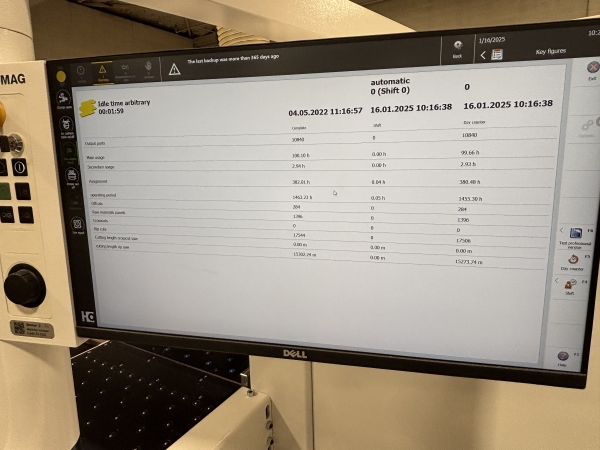

- Powercontrol/PowerTouch Touch-Screen w/ Windows 10
- CADmatic 5 Control with Assistance Graphic
- 480v, 3ph

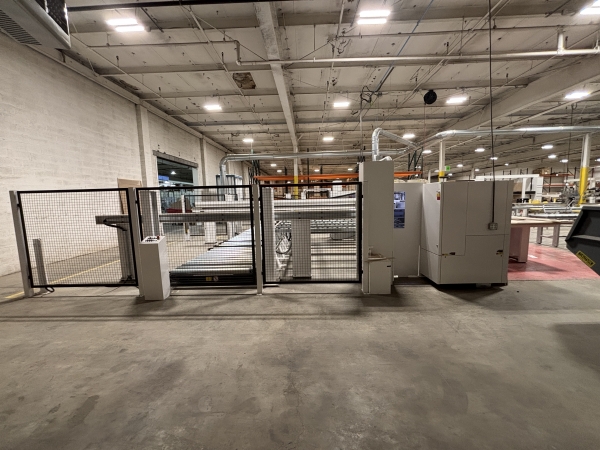

- Machine is still installed at the owner's faciliy. Buyer will be responsible for dismantling and loading.
