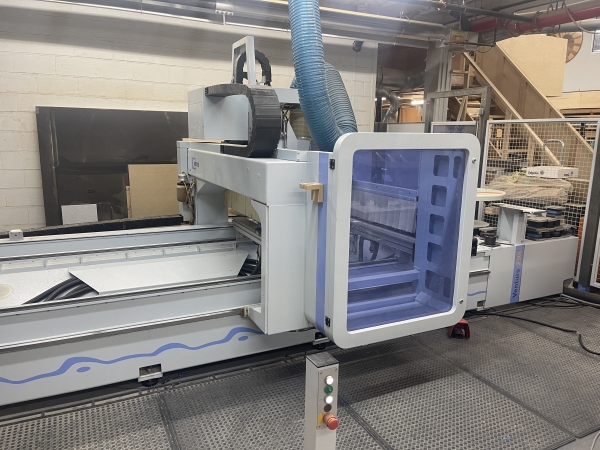

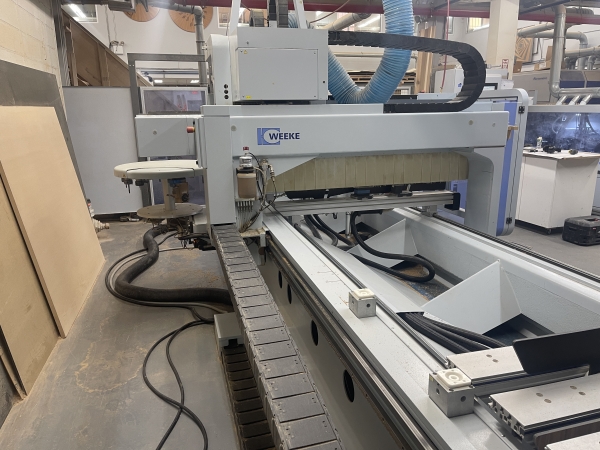

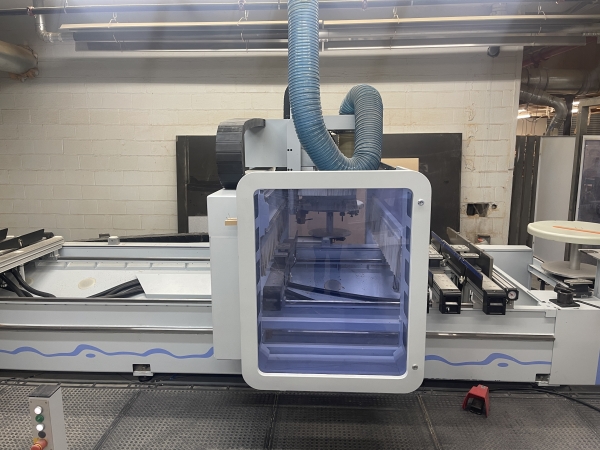

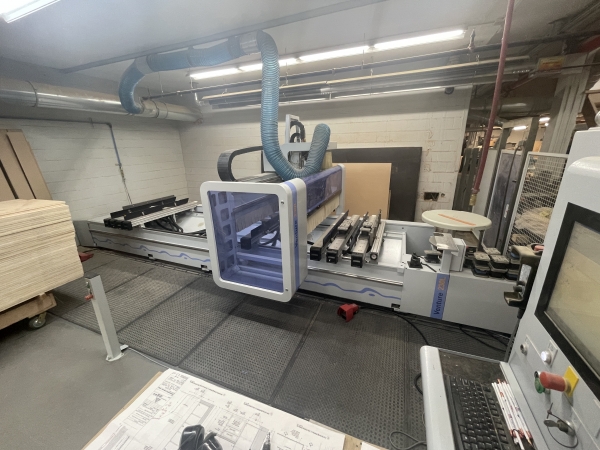

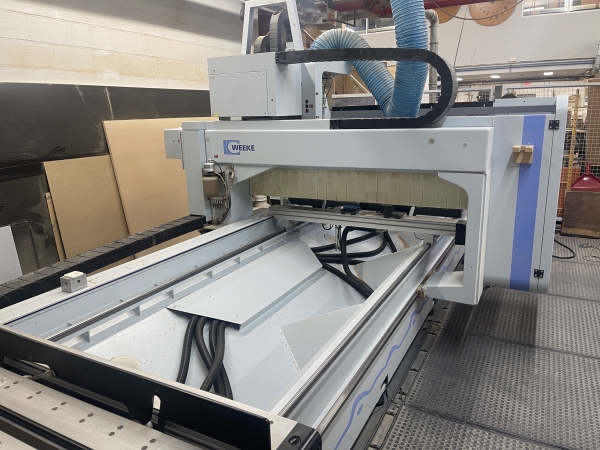

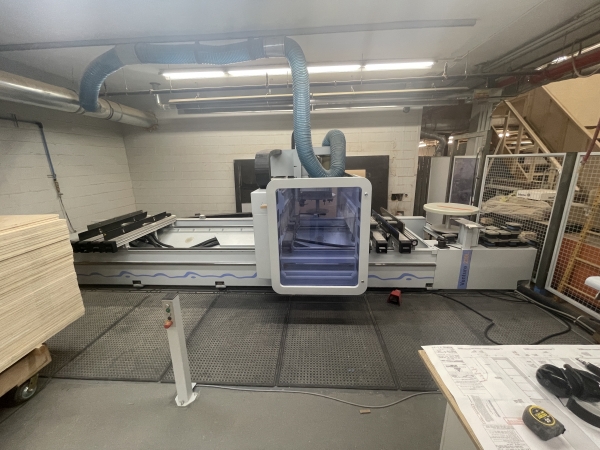

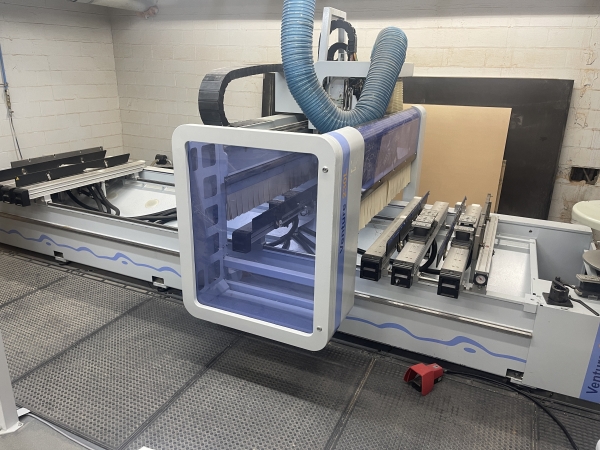

Weeke Venture 230L CNC Router

• Weeke Model Venture 230L CNC Router
• Note: Machine will not be available for pickup until ~ April 2025
• Axis Travel: X - 5430mm (213.77"), Y - 2180mm (85.82"), Z1 - 348mm (13.70"), Z2 - 215mm (8.46")
• Axis Speed: X/Y - 110m/min, Z - 20m/min

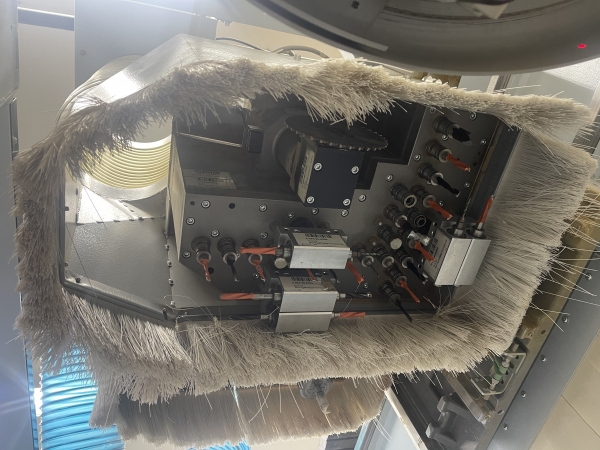

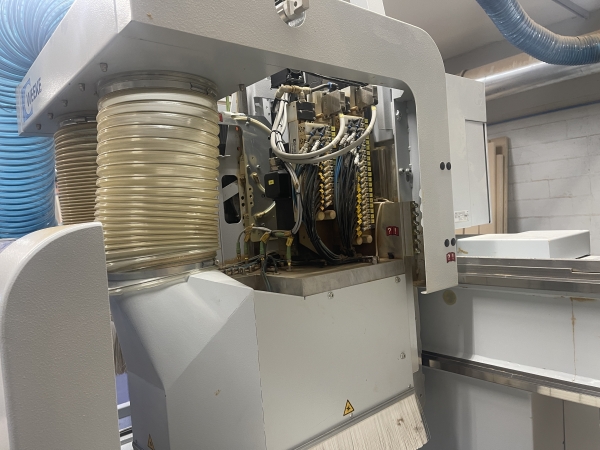

• One (1) 21 - Spindle Vertical Drilling Block with 60mm Z-Stroke, Distance between Spindles: 32mm
• Horizontal Boring Spindles - 6 Spindles - 32/64mm Pitch - 3 Each Direction (X+/-X), 4 Spindles - 32 Pitch - 2 Each Direction (Y+/-Y)
• One (1) Grooving Saw - X- & Y- Direction - 90 Rotation, Cutting Depth - 30mm

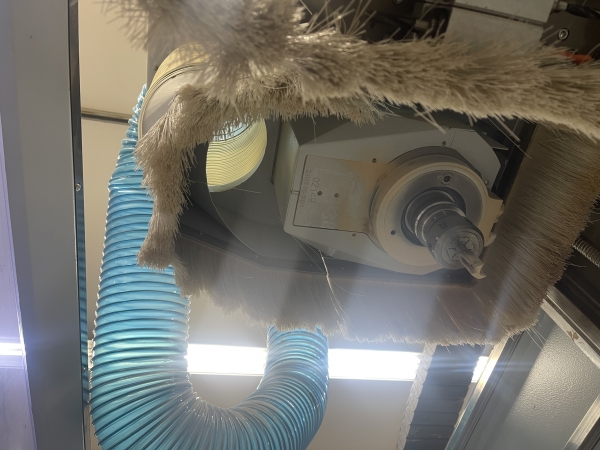

• One (1) Vertical Router Motor - 12kW (16HP), Tool Holder - HSK63, Tool Changing - Automatic, Speed - 1250-24000 RPM Stepless Programmable
• One (1) C-Axis Aggregate Interface - 360 Degree Interpolating. Includes Pneumatic Interface and Infinitely Variable Swivel of 360 Degree
• One(1) Fourteen (14) Place Automatic Tool Change Carousel(Rear), Arrangement is Moving with the Support in the X-axis Direction

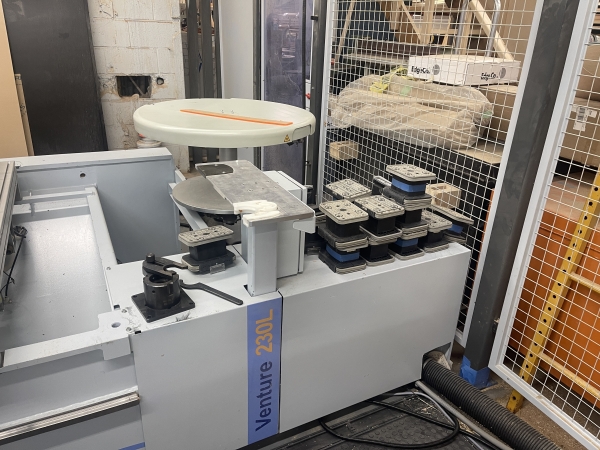

• One(1) Fourteen (14) Place Automatic Tool Change Carousel(Right Side), Arrangement is Mounted Laterally at the Right Hand Side of the Machine Frame,

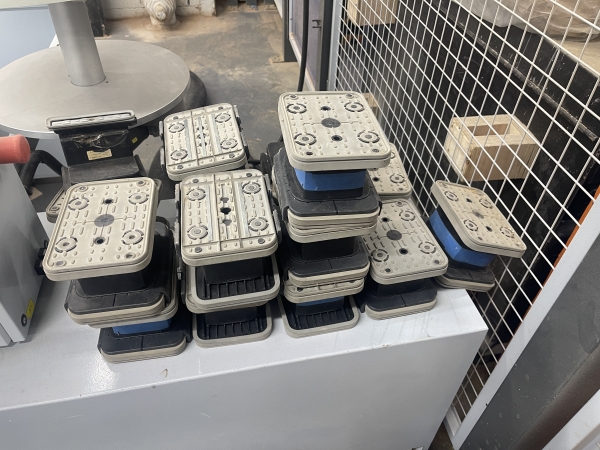

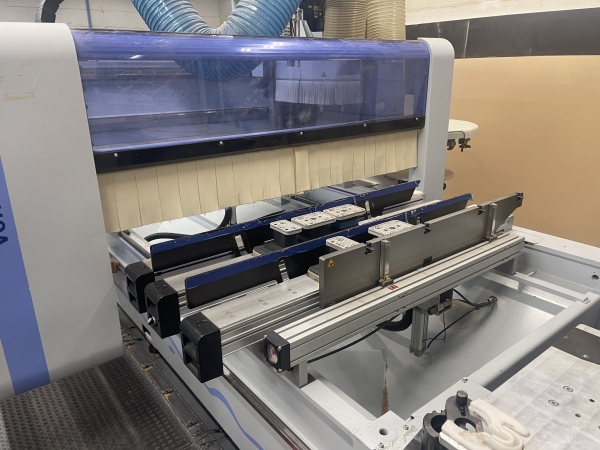

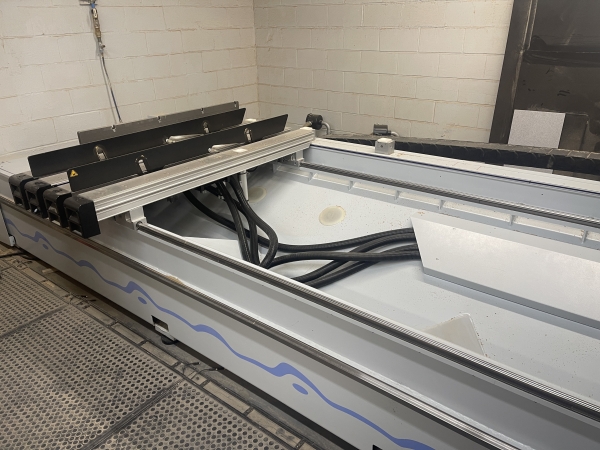

• One(1) Console Table with Diode Light Band (LED) Positioning System, Tubeless Vacuum Clamping System for Clamping of Panel Material, Working Field X=4500mm (180" Max Length), Y=1500mm (60" Console Length), Y=1600mm (64"Max Routing width and Workpiece Passage, Z=125mm(5" Maximum Thickness)

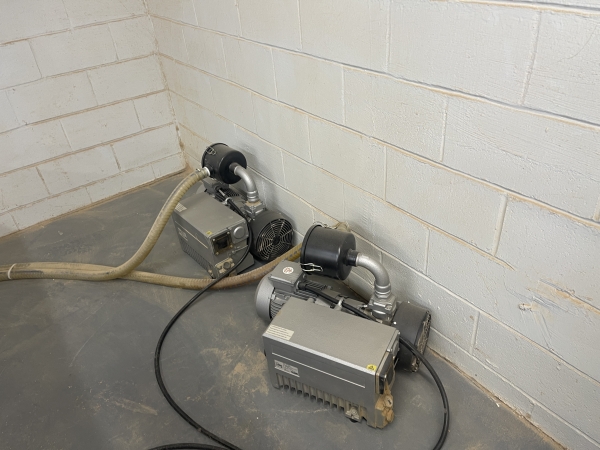

• Two(2) Vacuum Pumps

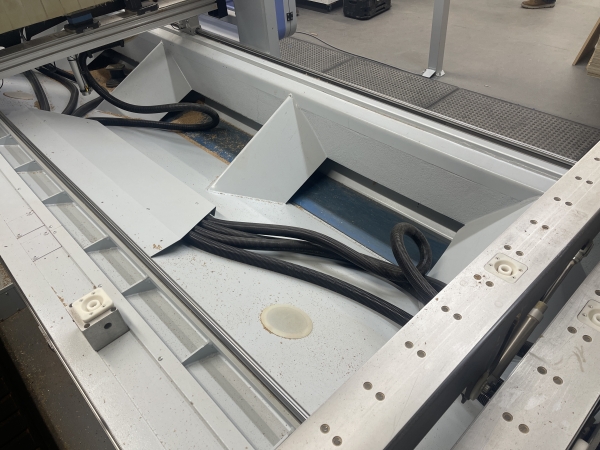

• Chip / Scrap Conveyor integrated into the Machine Frame for disposing of Chips and Waste Parts

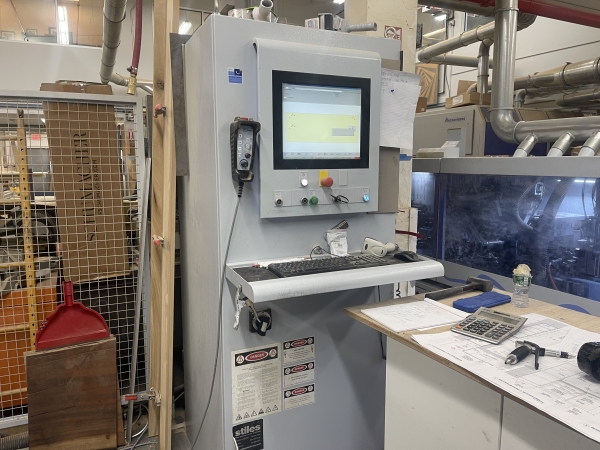

• Complete Detailed Specification Available Upon Request, Includes Console Table Details, CDS Condition Monitoring, PowerControl Hardware and Software, And woodWOP 6.0 Information
• Machine Can Currently Be Seen In Operation

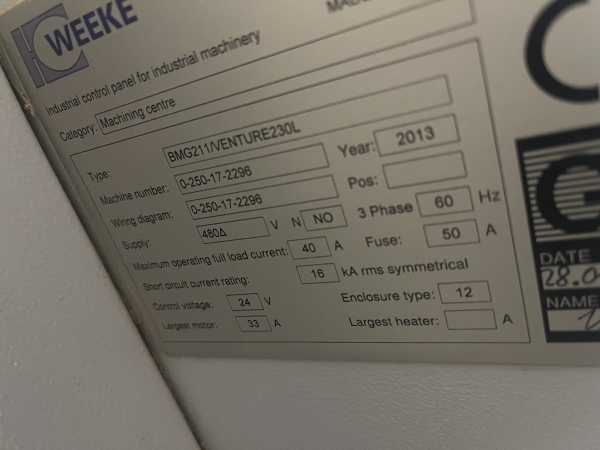

• Year 2013
• 480 volt 3ph
• Tool holders and aggregates do NOT come with machine
