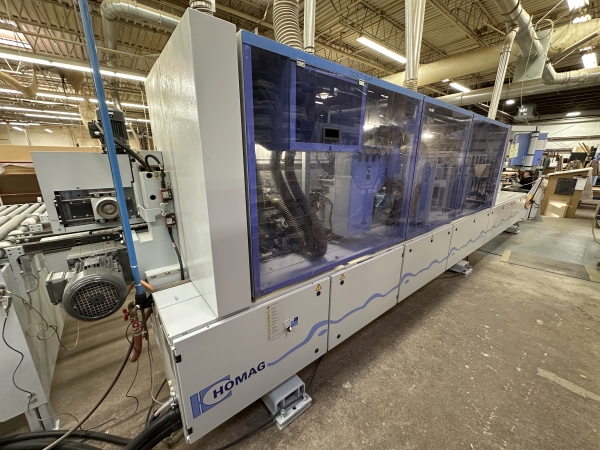

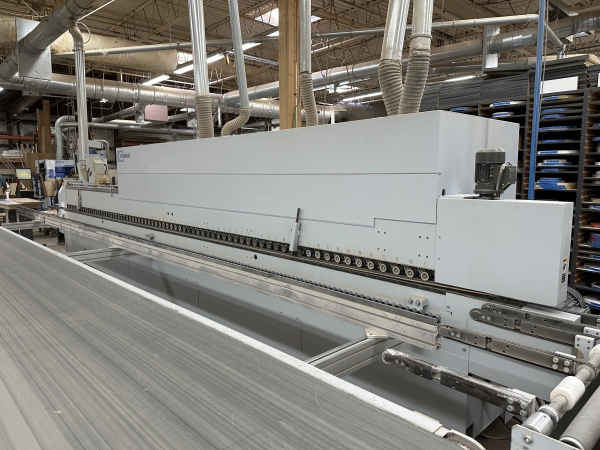

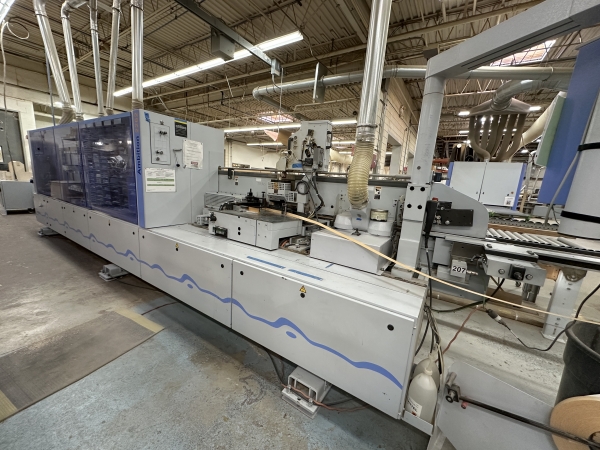

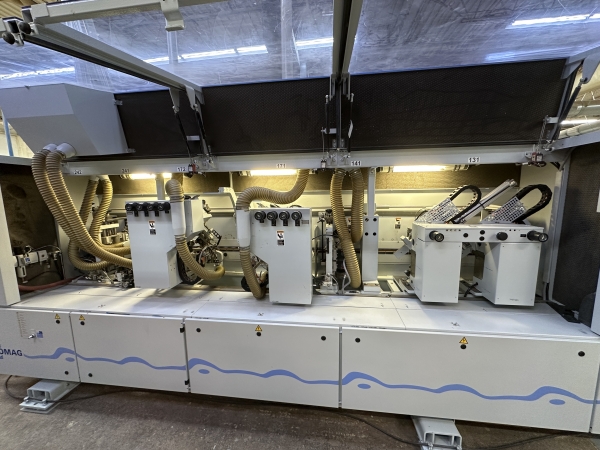

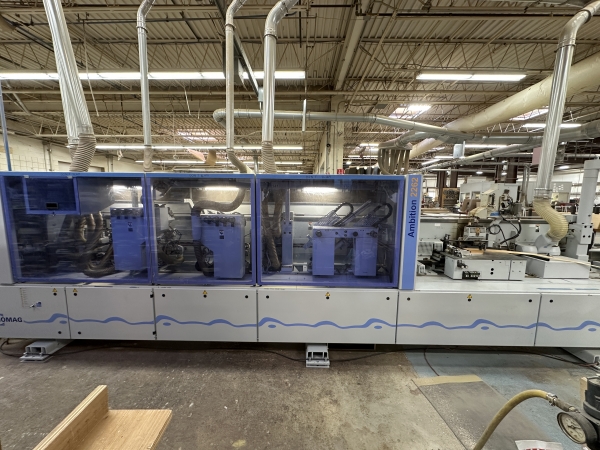

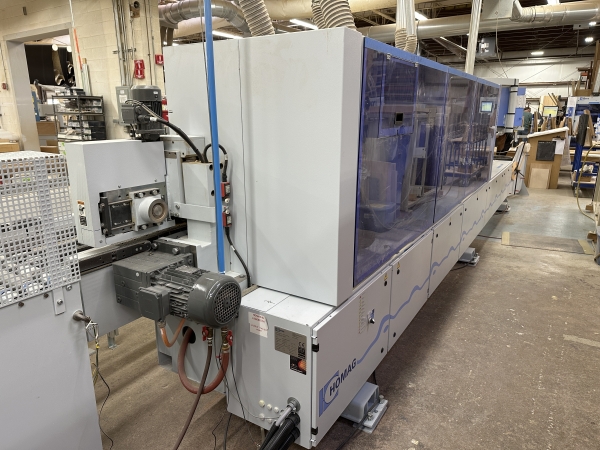

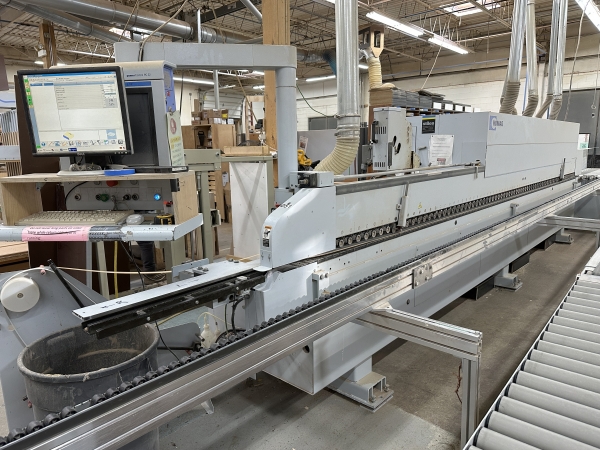

Homag Model KAL210 Ambition 2262 Edgebander

• Homag Model KAL210 Ambition 2262 Edgebander
• Working Level: 950mm (37-13/32")
• Min/Max Workpiece Thickness: 12/40mm (15/32" / 1-9/16")
• Edgebanding Thickness Capacity:
• Strips - 0.4mm - 6mm (0.16" - 15/64") Coils - 0.3mm - 3mm (0.12" - 1/8")
• Variable Feed Speed: 18-25 m/min (59-82FPM)
• Adjustable Infeed Fence

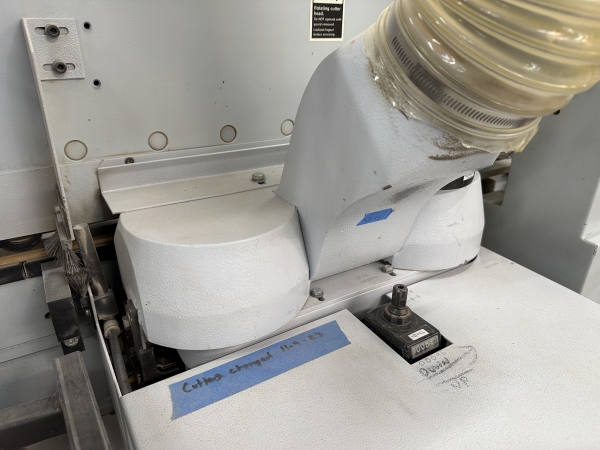

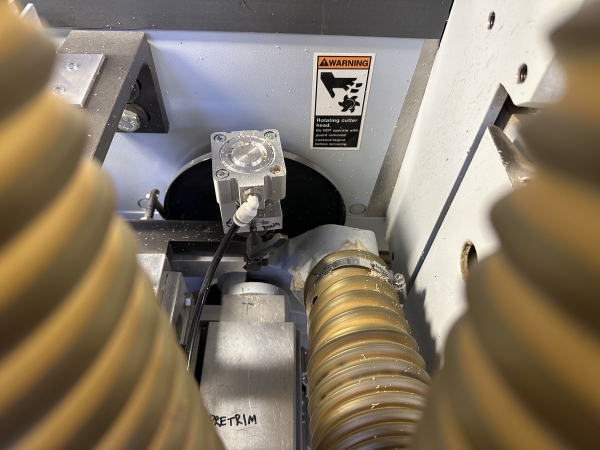

• Pre-Milling Unit: 2 Motors (3kW each) Max tool Diameter: 125mm (4-15/16)
• Panel Pre-Heater
• Quick Melt Gluing Unit - Melting Capacity: 12kg/h (26lbs/h)
• Clipping Unit: Max Edge Thickness: 3mm (1/8) Max Edge Height 43mm (1-11/16")
• Pressure Unit
• Snipping Unit: 2 Motors (0.8kw each) Max Edge thickness: Chamfer - 3mm Straight - 6mm
• Flush Trimming Unit: Top/Bottom

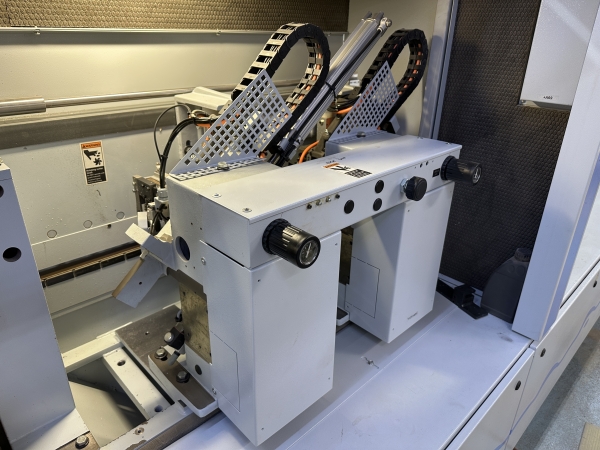

• Profile Trimming Unit: Leading/Trailing/Top/Bottom (2) Motors - 0.4kW Each
• Profile Scrapping Unit: Top/Bottom/Laterally
• Glue Joint Scraping Unit: Top/Bottom

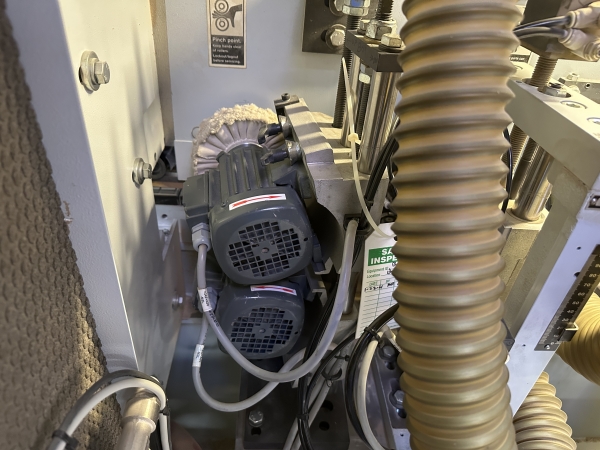

• Edge Buffing Unit: Top/Bottom

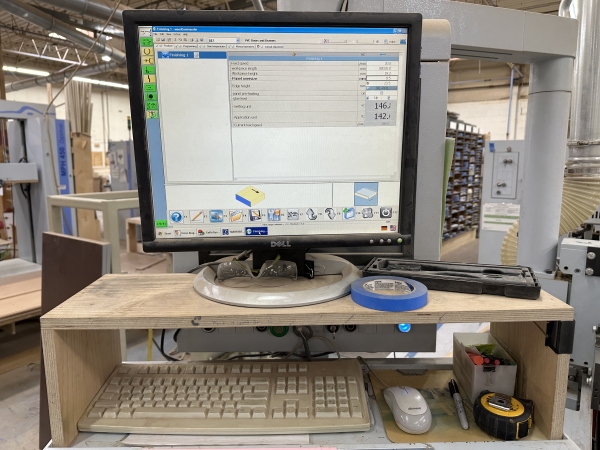

• Power Control PC22 with PLC Controls

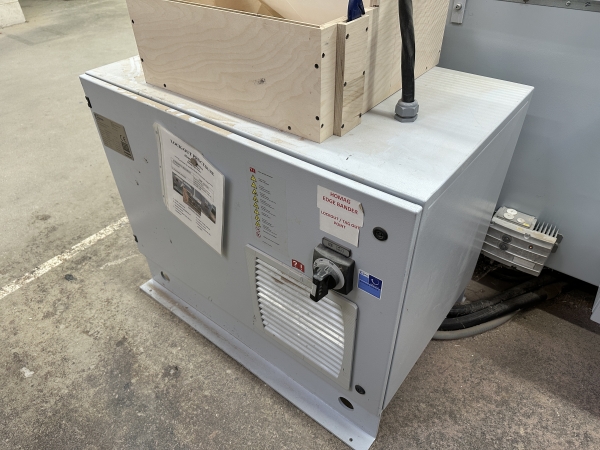

• Wired for 480V 3ph, Includes Transformer
• Note: Available for pick-up/delivery in May 2025. This item is part of a plant liquidation. Buyer will be responsible for removal and loading costs (RT can help arrange).
