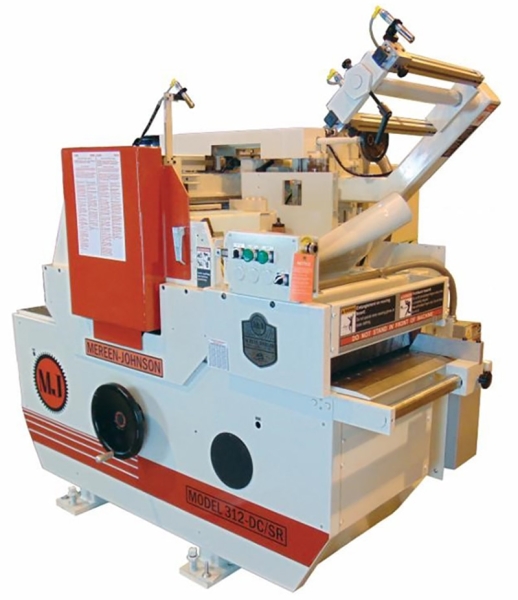

Mereen-Johnson Model 312-DC/SR1 "Select-A-Rip" Straight Line
Machine Available
Stock #86400N
New- Mereen-Johnson Model 312-DC/SR1 "Select-A-Rip" Straight Line Arbor space of 12" featuring a 1" minimum to 12" maximum cutting capability between saws. 2-3/4" maximum thickness using 14" diameter tooling. 30" minimum length glue-joint accuracy, 22" minimum length for bust-up only. 6" throat. Minimum rip width using TwistLock collars 1". Minimum rip width with traveling shoe hold downs and TwistLock collars is 1-3/8". Minimum rip width between the select saw and TwistLock collar blade is 1-1/4" including the movable shoes
- Motor: 50 HP 3600 RPM TEFC Mereen-Johnson direct arbor drive
- Arbor 2-9/16" dia. with two (2) 1/2" wide x 1/8" deep keyways 180 degrees opposed
- Arbor melonite coated for ease of collar adjust and wear resistance. Arbor arranged for TwistLock Collars and clamp-up sleeve
- Arbor lock-out on access door
- Air actuated disc arbor brake, stops arbor in approx. 15 seconds
- One shifting saw assembly arranged for nominal 1" to 12" net rip horizontal adjustment. Arranged for 12" to 14" dia. tooling. Saw positioning integrated to infeed floor mounted 6" diagonal color touch screen operator interface. Select saw with ten preset positions and manual position jog functions. One diode laser light provided for select saw position reference
- Two (2) outboard TwistLock saw mounting collars. Minimum rip with of 1" with standard collar orientation and 1-3/8" minimum rip width with movable shoes
- Two (2) saw blades provided, 12" dia. x 36 tooth x .160" kerf x 3-1/2" bore with four .275" diameter mounting holes for TwistLock collars
- One (1) select saw blade, 12" dia. x 36 tooth x .160" kerf x 3-1/8" bore with four .275" diameter mounting holes
- Machine mounted, pivoting laser light mounting bracket, arranged for mounting up to five (5) laser lights. Pivoting feature allows for fast and easy laser light to saw blade alignment. Two diode laser lights provided for TwistLock collar mounted saw position reference. Additional laser lights quoted as options
- 3 HP TEFC heavy duty feed drive assembly with variable frequency drive, feed rates 30' to 150' per minute
- Programmable current trip jam protection
- Hold downs & Bed plate: Four 3" dia. air loaded overhead idle press rolls
- Full width segmented maple overhead spring loaded bedplate
- Manual handwheel vertical adjust of press rolls and bed plate for unit vertical adjust with scale and pointer thickness reference
- Kickback fingers: Single bottom and double upper infeed, and single upper outfeed
- OPTIONS AVAILABLE UPON REQUEST
