Mereen-Johnson Model 99-D-BOX Drawer Clamp
Machine Available
Stock #14300N

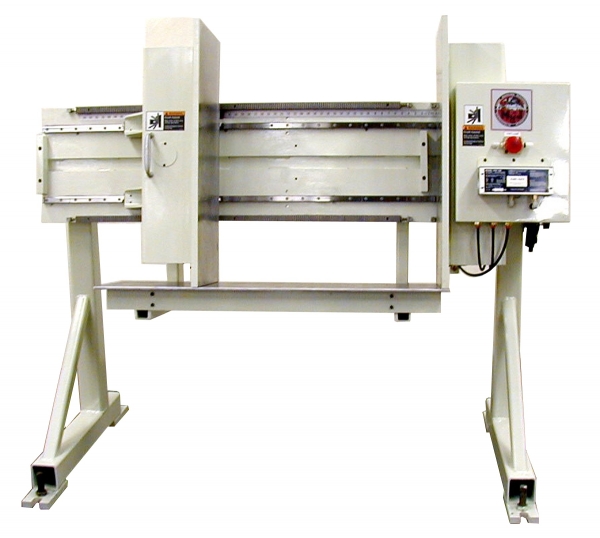

New- Mereen-Johnson Model 99-D-BOX Drawer Clamp
- Tubular weldment frame with built-in leveling bolts and anchor feet
- Horizontal axis: horizontal axis traversed on precision linear rails with reciprocating bearings, manual slide to position adjust, air cylinder rack lock integrated with clamp controls
- scale and pointer position reference
- clamp through air actuation
- Min. Clamping Size: 3-1/2" wide x 10" long x 1" deep
- Max. Clamping Size: 36" wide x 42" long x 15" deep
- Horizontal Clamping Pressure: 2000 lbs. max.
- Air requirement: 80-100 psi, maximum 5 cfm required
- Air supply line: 3/4" diameter
- CONTROLS Air valve push buttons for horizontal axis through dual palm type controls, R.H. side, interlocked for operator safety
