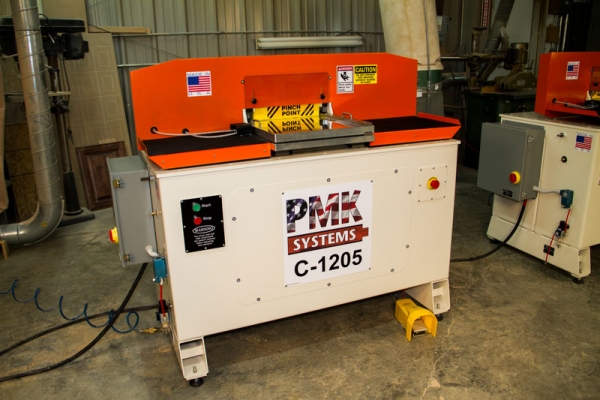

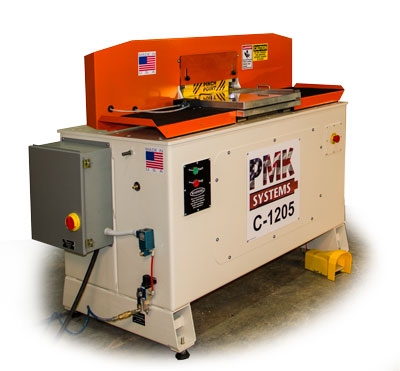

PMK Systems Model C-1205 End Matcher/Coping Machine

• PMK Systems Model C-1205 End Matcher/Coping Machine

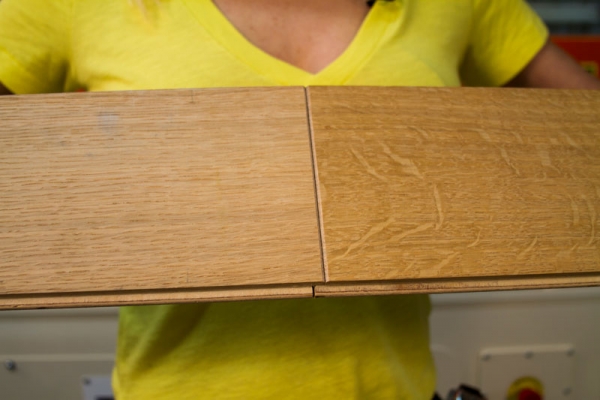

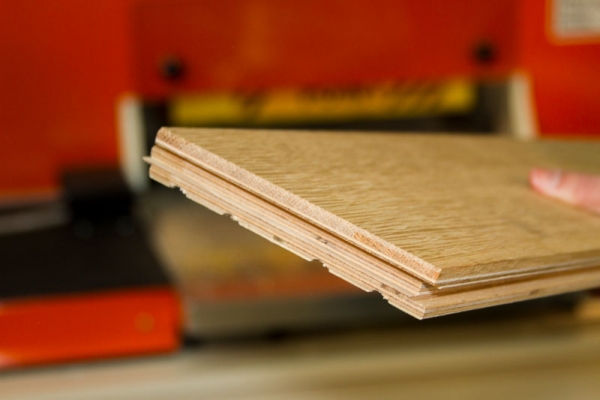

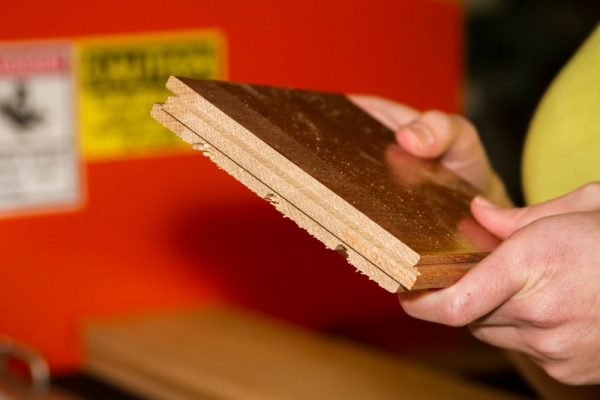

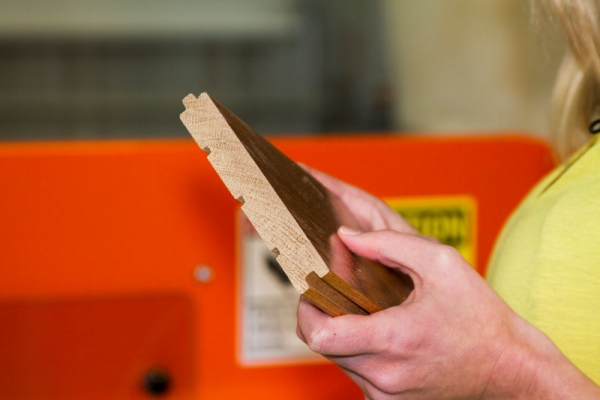

• The PMK C-1205 Produces Chip free coping/end-matching of squared or profiled parts without the need of a back-up piece
• Two counter-Rotating Spindles
• Spindle Diameters: 1-1/4"
• Spindle Speeds: 7,000 RPM
• Main Motor: 7-1/2 HP Motor, 230/460 volts (please specify your voltage)
• Maximum Cutter Diameter: 5" OD
• Minimum Cutter Diameter: 3-1/2" OD
• Maximum Part Size: 2" Thick x 13.5" Wide
• Minimum Part Length: 3"
• Maximum Depth of Cut: 3/4" Depending on Profile & Density of Wood
• Minimum width of part is determined by the O.D. of the cutter and if the part is profiled or not
• Unlimited Part Length
• External flow valve allows you to adjust the speed of the sliding table according to the thickness, width & density of the part
• NEW Safety lenses in top of hood to check rotation of spindles
• Cycle time adjustable from 5 to 10 seconds

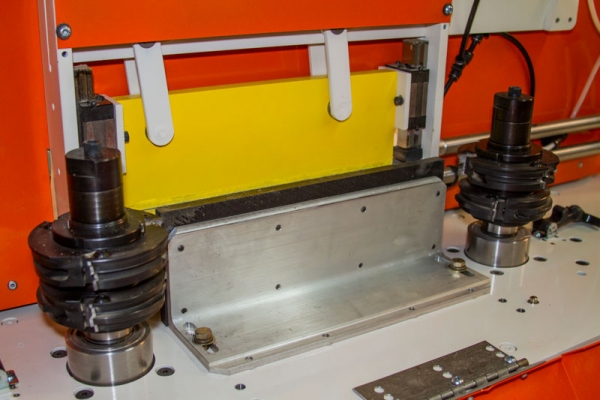

• The C-1205 has the capacity to stack tooling
• Maximum two cutters per spindle
• Dust Hood with 5" Port
• Dust Collection Requirement: 1,000 CFM
• Precision THK rails for guidance of carriage stroke and hold down clamp
• Side pressure clamp ensures proper alignment with fence
• The C-1205 meets UL & CSA Electrical Standards
• Includes aluminum sub-table for stacking of tooling
• Tooling Sold Separately
