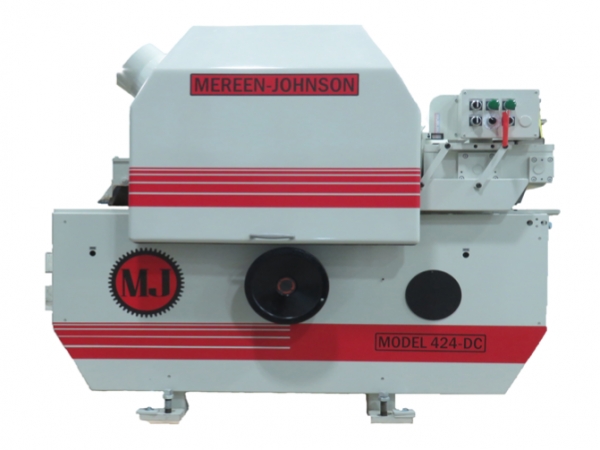

Mereen-Johnson Model 424-DC Straight Line Multiple Rip Saw
Machine Available
Stock #86900N
New- Mereen-Johnson Model 424-DC Straight Line Multiple Rip Saw
- Capacity: Arbor space 24"
- thickness to 3-1/2" using 14" diameter tooling
- 30" Minimum length glue joint accuracy
- 6" Throat
- Arbor Drive: 75HP, 3600RPM, TEFC
- Feed Drive: 3HP, TEFC Heavy duty direct coupled feed drive assembly with variable frequency drive, Feed rates 30' to 245' per minute rate
- Programmable current trip jam protection
- Feed Bed: Mereen-Johnson exclusive POSI-FEED dip bed carried on precision machined and hardened 5" pitch DOUBLE-VEE chain, Contoured hardened dip cams
- Hold Downs and Bed Plate: Four 3" diameter air loaded overhead idle press rolls
- Full width segmented maple overhead spring loaded bed plate
- Powered vertical adjust of press rolls and bed plate for unit vertical adjust through up/down push button controls, manual handwheel adjust with scale and pointer thickness reference
- Saw Sleeve: One 24" capacity sleeve, arranged for 3-1/8" bore, 14" maximum dia. tooling
- Saw Spacers: One set of saw spacers included, 24" total length
- Dust Collection: Two upper dust hoods: One 10" dia, One 5" dia, One Lower 5" dia.dust hood (Requires total 4,060 CFM at 5,000 FPM velocity with 4" water gauge at hood opening)
- Anti-Kickback Assemblies: Single bottom and double upper infeed, and single upper outfeed
- Sound Enclosure: Machine mounted fiberglass sound enclosure
- Press roll and motor enclosure hinged for machine access
- Press roll enclosure with gas cylinder lift assist
