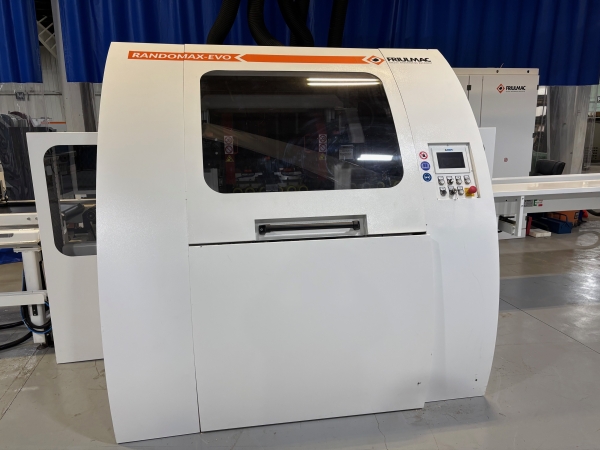

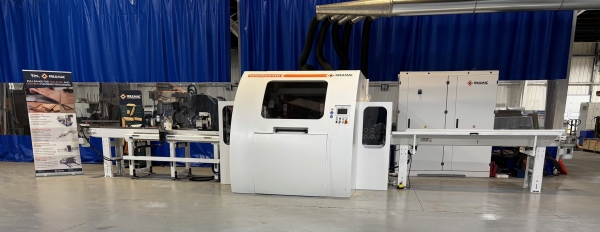

Friulmac Randomax Evo Random Length Defecting End Matcher
Machine Available
Stock #26300N
New- Friulmac Randomax Evo Random Length Defecting End Matcher Automatic End-trimming and Profiling of Random Length Components

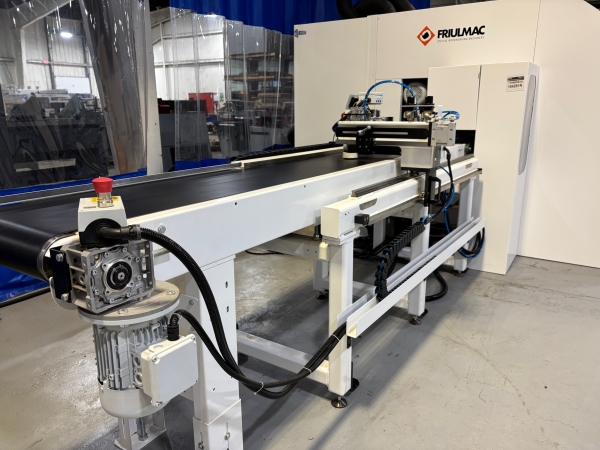

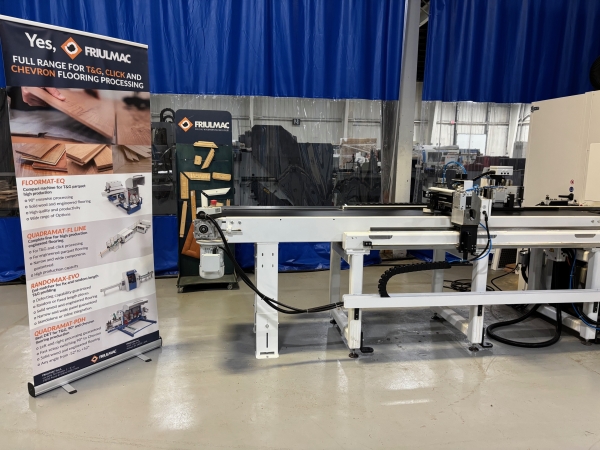

- Defects are Marked with Fluorescent Crayon and Work-piece is positioned onto in-feed belt transfer by the operator
- Work-Piece is then transferred inside the machine by means of motorized bottom tracks with free rollers top pressure system
- A laser photo-eye activates an electronic measuring procedure to determine the work-pieces positioning with reference to the size of the scrap to be removed
- The scrap size has to be preset on the control panel
- Trimming unit operation by means of pneumatic cylinder
- Work-piece referencing & clamping by means of controlled pneumatic pressure sequence

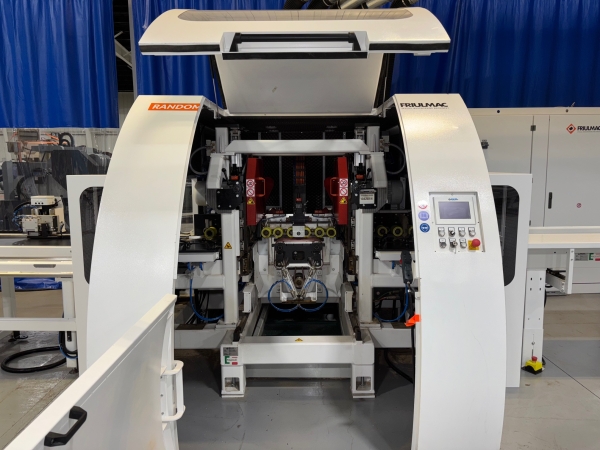

- The scoring & profiling units are assembled on a movable base that slides on precision linear guides by means of pinion (connected with a brushless motor) and rack
- The speed (forward, profiling & backward) is adjustable directly from the control board
- Bakelite back-up blocks, driven by pneumatic cylinder, grants a great result of the work-pieces end-working
- When the end-processing has finished, the work-piece gets released from the clamping and moves to the next step to repeat the above described procedure with reference to the trailing-end
- From here on, the machine keeps positioning and processing the leading and trailing ends simultaneously
- This machine also comes standard with a fixed length stop allowing for high precision parts to be cut and machined. Fixed length stop usable from 200mm-2500mm this gives you the ability to process Herringbone Flooring in the Flooring industry
- Workpiece Length ---- From 200mm (8") upto 3000mm (118")
- * Note 118” is the suggested maximum length for the part to be totally supported. Pieces over 3 meters in length may need extra support but can still process without problem.)
- Workpiece width ------ From 50mm (2") to 400mm (15.75")
- Workpiece Thickness - From 10mm (0.4") to 40mm (1.6")
- Trimming units: Two(2) 5.5KW(7.5HP) with 30mm arbor and 550mm tool diameter (supplied)
- Scoring units Four(4) 1.2KW(1.5HP) with 20mm arbor and 100mm tool diameter
- Profiling Units Two(2) 6KW(8HP) with 30mm diameter x 70mm usable length arbor and 120mm tool diameter
